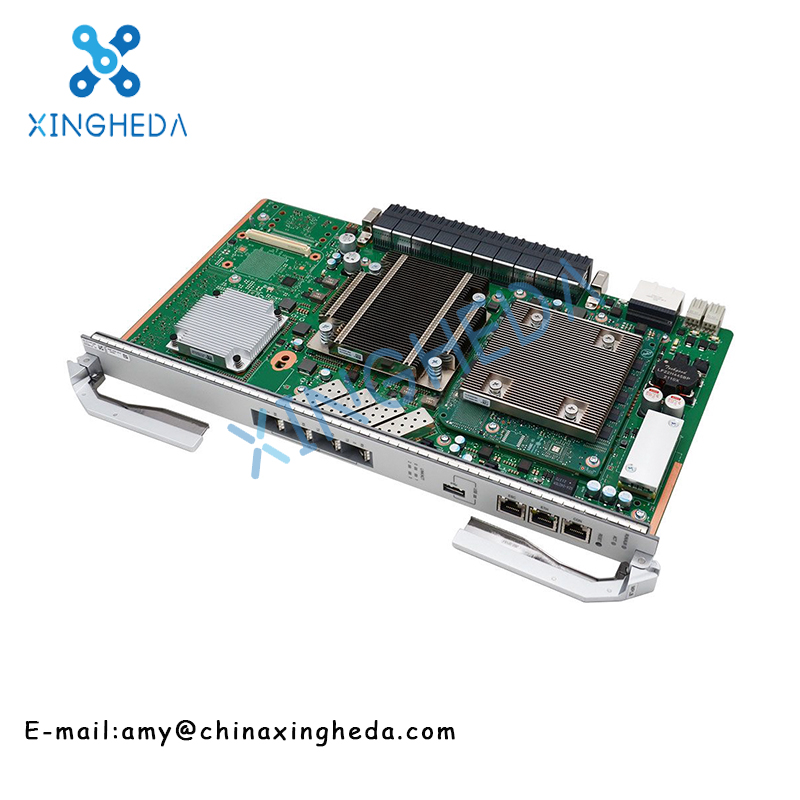

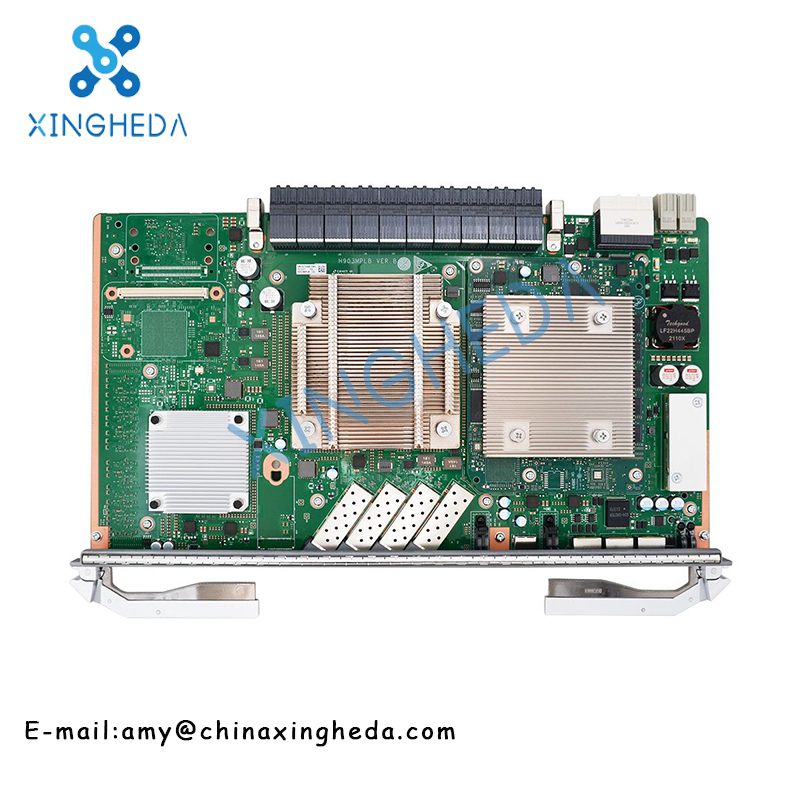

HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board

  • 1
  • 2
  • 3

Brand Name : HUAWEI

Model Number : H903MPLB

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 03027CAB

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI H903MPLB 03027CAB Huawei MA5800 X7/X15/X17 main control board

Product Desription:



Supports active/standby switchover at the control plane

Supports load sharing mode at the forwarding plane, doubling processing performance

Supports ISSU, saving the upgarde interruption time

Supports synchronization Ethernet

Supports 1588v2 and 1588ACR with proper daughter boards

Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).

Supports Communication Interfaces TX RX0 to TX RX3 (4 x SFP+/SFP 10GE/GE ports).



MPLB is a main control card of Huawei SmartAX MA5800 NG OLT; it is the core of system control and service switching and aggregation. MAX access 17408 subscribers, and supports 131072 ARP table.



Specification:

Function
Bandwidth per slot 200Gbit/s (load sharing mode)
MAC address table 262143
Access ONT 17408
Multicast user 17408
IPv4 routing table 65536
IPv6 routing table 16384
Service port 139264
ARP table 131072
Maximum Frame Size

2052 bytes.

9216 bytes (jumbo frame enabled)
Environment
Operating temperature -40°C to +65°C
Power consumption Static: 73W
Maximum: 120 W
Mechanical Specification
Dimensions(mm) 31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg) 2.2



Product details:

HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board

HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board

HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board
HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board
HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board
HUAWEI H903MPLB 03027CAB Huawei MA5800 X7 / X15 / X17 Main Control Board
