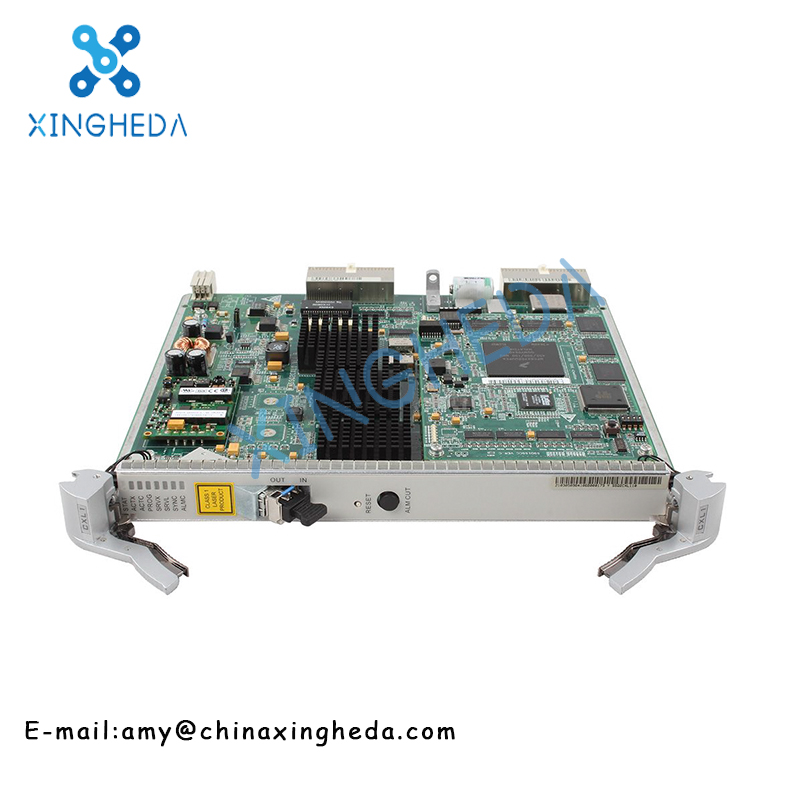

Huawei OSN1500 OSN2500 SCC unit, Cross-Connect unit, Timing unit, and STM-16 2.5G line unit integrated board SSQ2CXL1602 equipped with 1 S-16.1 15km SFP module
SSQ2CXL16 can configure STM-16 SFP module.
Higher order cross-connect capacity: 20 Gbit/s
Lower order cross-connect capacity: 20 Gbit/s
Access capacity: 18.75 Gbit/s.
Supports the detection and query of the information about the optical module.
Supports the ALS function.
Supports the single-fiber bidirectional optical module.
Supports the transparent transmission and termination of the path overheads.
Supports the setting and query of the J0, J1, J2, and C2 bytes.
Supports various alarms and performance events.
Supports one channel of ECC communication
Supports the two-fiber ring MSP, four-fiber ring MSP, linear MSP, SNCP, SNCTP, and SNCMP protechtion schemes.
Supports 1+1 hot backup for the Cross-Connect, Timing and SCC Units protection schemes.
Supports inloops and outloops at optical interfaces.
Supports the warm reset and cold reset.
Supports the query of the manufacturing information of the board.
Supports the in-service loading of the FPGA.
Supports the upgrade of the board software without affecting services.
Processes 40 channels of DCC signals.
Supports the in-service check function for the PIU.
Supports the failure check function for the lightning protection module of the PIU.
Supports the VC-12, VC-3, VC-4 services, VC-4-4c, VC-4-8c and VC-4-16 concatenation services.
Q2CXL16 is a Main Control and Cross-Connect integrated board for Huawei OSN1500, OSN2500, provide STM-16 signals, controls communication, grooms services and clock signals. Part number is 03055398, V1R8, V1R10 version are default mainstream delivery version.
SSQ2CXL16(S-16.1) configure 1 S-16.1 15km SFP module, but eSFP module are changeable to different type as L-16.1, L-16.2 to reach different transmission distance, please contact thunder-link.com sales team if need customized configuration.
