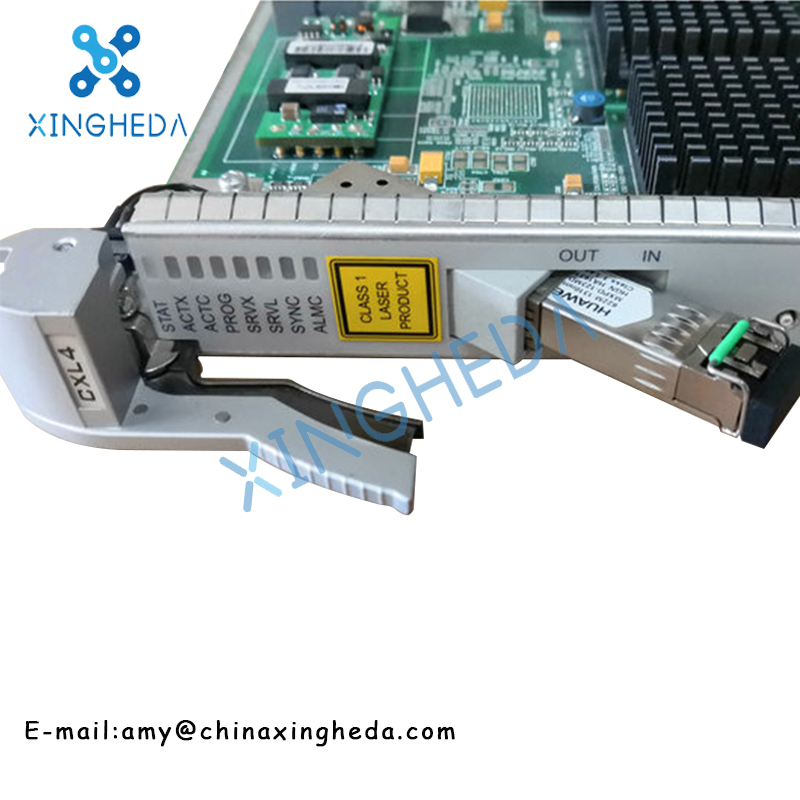

HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board

  • 1
  • 2

Brand Name : HUAWEI

Model Number : Huawei CXL4

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : Huawei 03055402

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board

Product Description:

Q2CXL4 is a Main Control and Cross-Connect integrated board for Huawei OSN1500, OSN2500, provide STM-4 signals, controls communication, grooms services and clock signals. Part number is 03055402, V1R8, V1R10 version are default mainstream delivery version.

SSQ2CXL4(L-4.1) configure 1 L-4.1 40km SFP module, but eSFP module are changeable to different type as S-4.1, L-4.2 to reach different transmission distance, please contact thunder-link.com sales team if need customized configuration.



Specification:

Feature Code
Board Feature Code Type of Optical Interface
SSQ2CXL4 11 L-4.1
SSQ2CXL4 16 L-4.1
Optical Interface Parameter
Parameter Value
Nominal bit rate 622080 kbit/s
Line code pattern NRZ
Application code L-4.1
Transmission distance (km) 20 to 40
Type of fiber Single-mode LC
Operating wavelength range (nm) 1280 to 1335
Launched optical power range (dBm) -3 to -2
Receiver sensitivity (dBm) -28
Minimum overload (dBm) -8
Minimum extinction ratio (dB) 10
Maximum -20 dB spectral width (nm) 1
Minimum side mode suppression ratio (dB) 30
Mechanical Speifications
Dimensions (mm) 25.4 (W) x 220 (D) x 254.1 (H)
Weight (kg) 1.1


Product Details:
HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board

HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board
HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board
HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board
HUAWEI CXL4 03055402 SSQ2CXL411 OSN1500 OSN2500 Master Cross Interface Board
